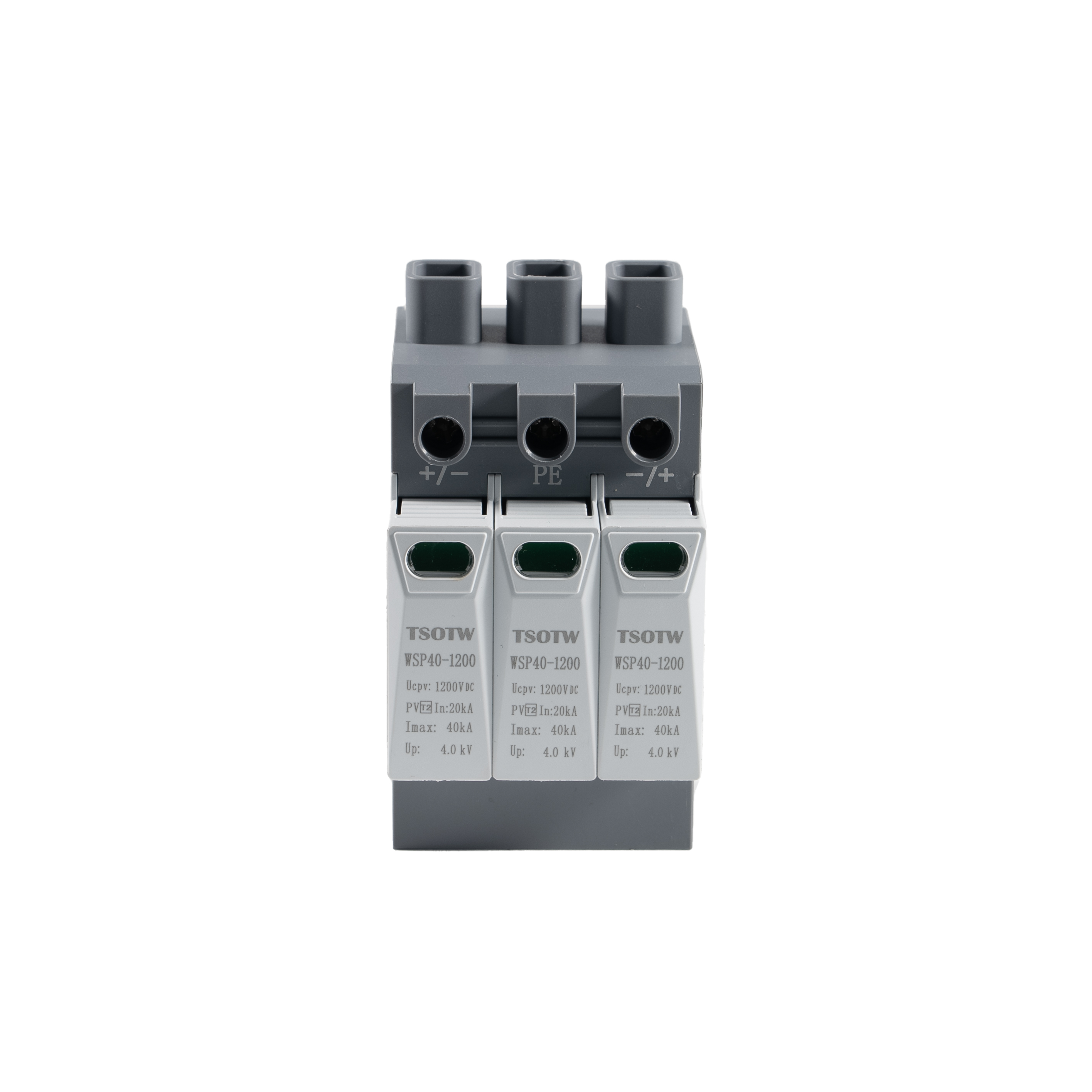

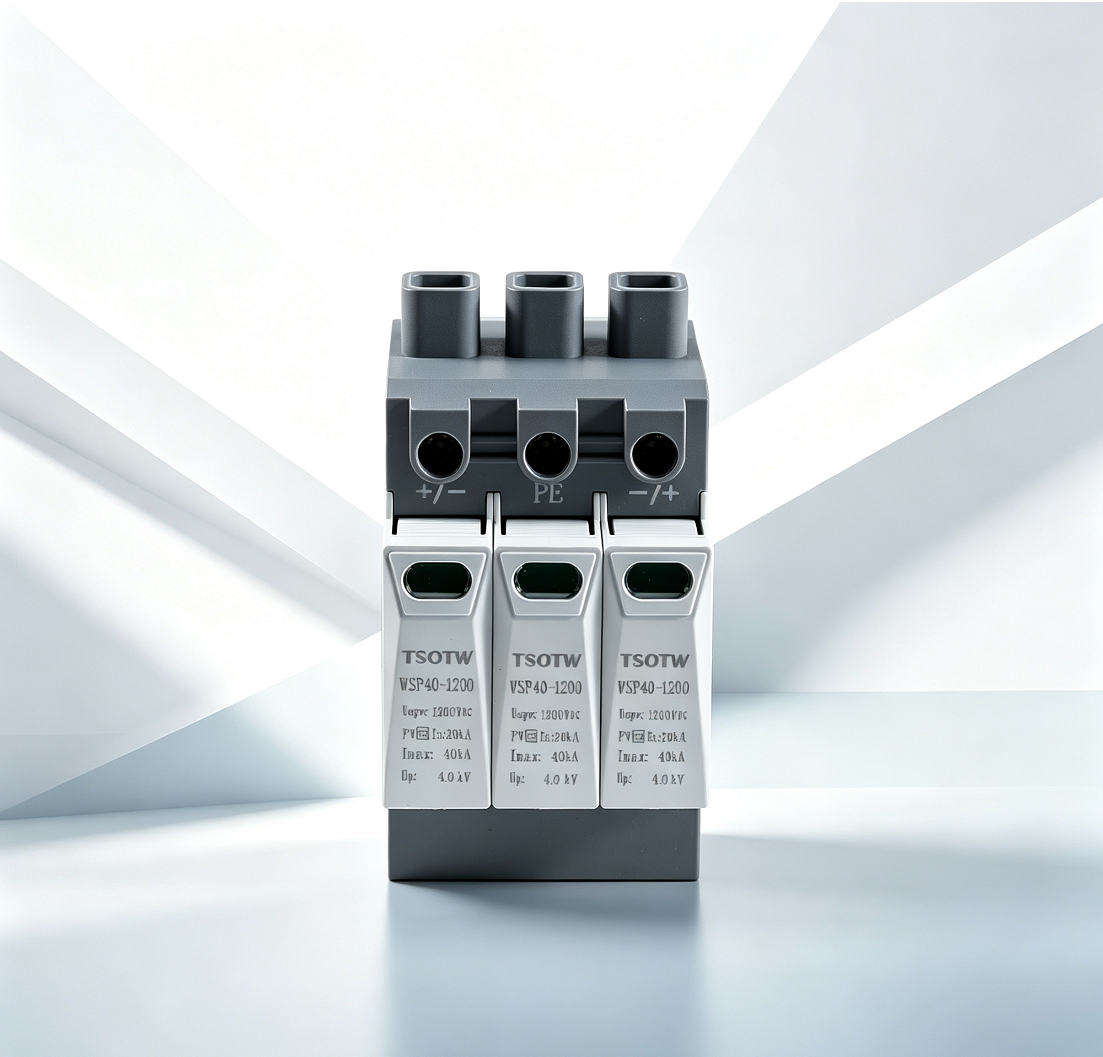

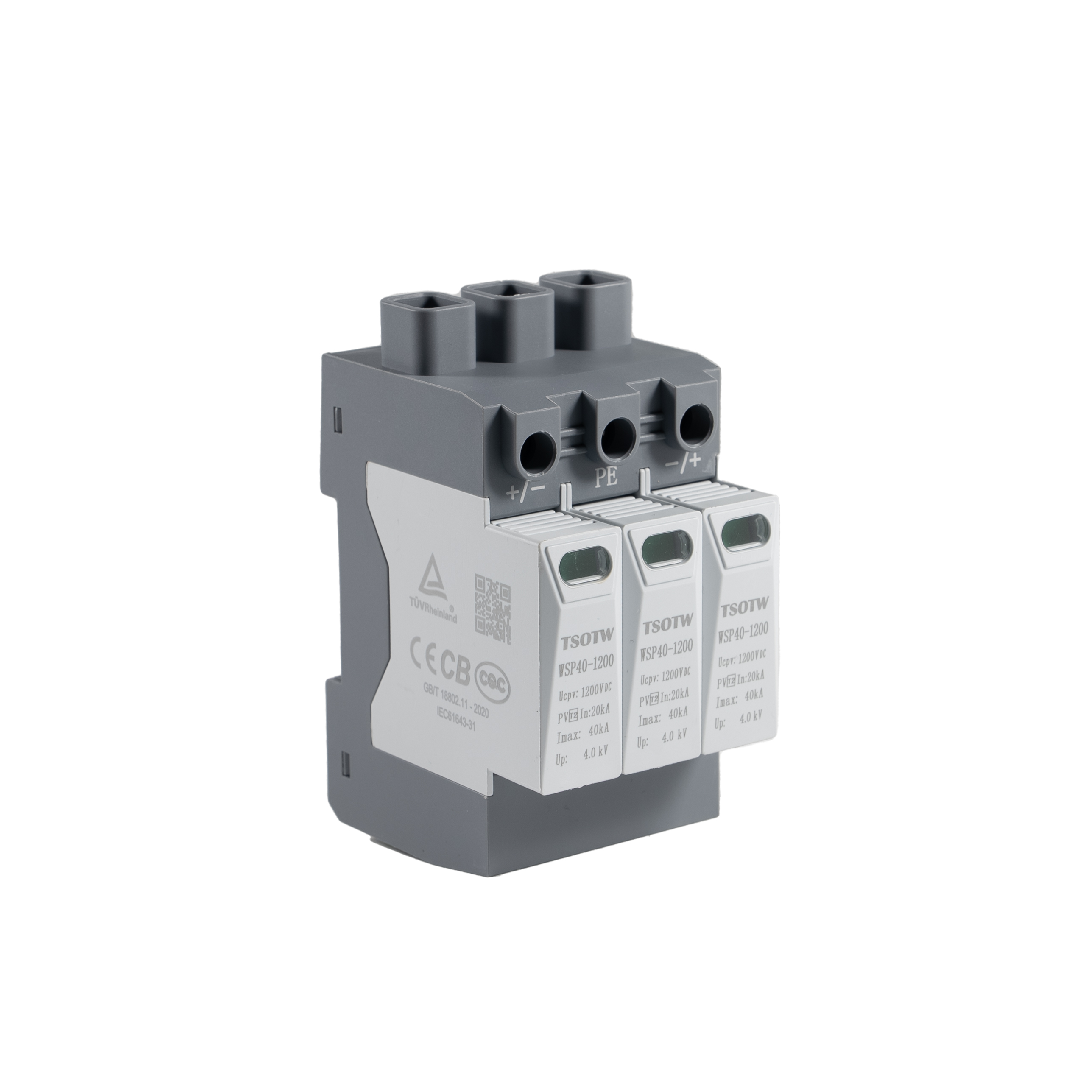

| Model | WSP-C40 |
|---|
| Nominal discharge current (8/20us) In (kA) | 20 |
|---|
| Maximum discharge current (8/20us) Imax (kA) | 40 |
|---|
| PV max. continuous operating voltage Ucpv(V) | 48 / 110 / 130 / 150 / 220 / 275 / 300 / 360 / 500 / 600 / 750 / 1000 / 1200 / 1500 / 1800 |
|---|
| Voltage protection level Up (kV) | 0.55 / 1.2 / 1.2 / 1.5 / 1.8 / 2 / 2 / 2 / 2.7 / 2.7 / 2.7 / 3.6 / 4 / 5 / 5.3 |
|---|
| Certification | CE / ROHS / TUV / CE / ROHS / CE / ROHS / TUV / CE / ROHS / CE / ROHS / TUV / CE / ROHS |
|---|
| Protection mode | 2P / 3P |
|---|
| Rated short-circuit current Iscpv(A) | 1000 |
|---|
| Response time | 25ns |
|---|
| Max. wire cross-section | 4AWG (25MM2) |
|---|
| Enclosure protection rating | IP 20 |
|---|
| Enclosure material | Thermoplastic : flame-retardant class UL94-V0 |
|---|

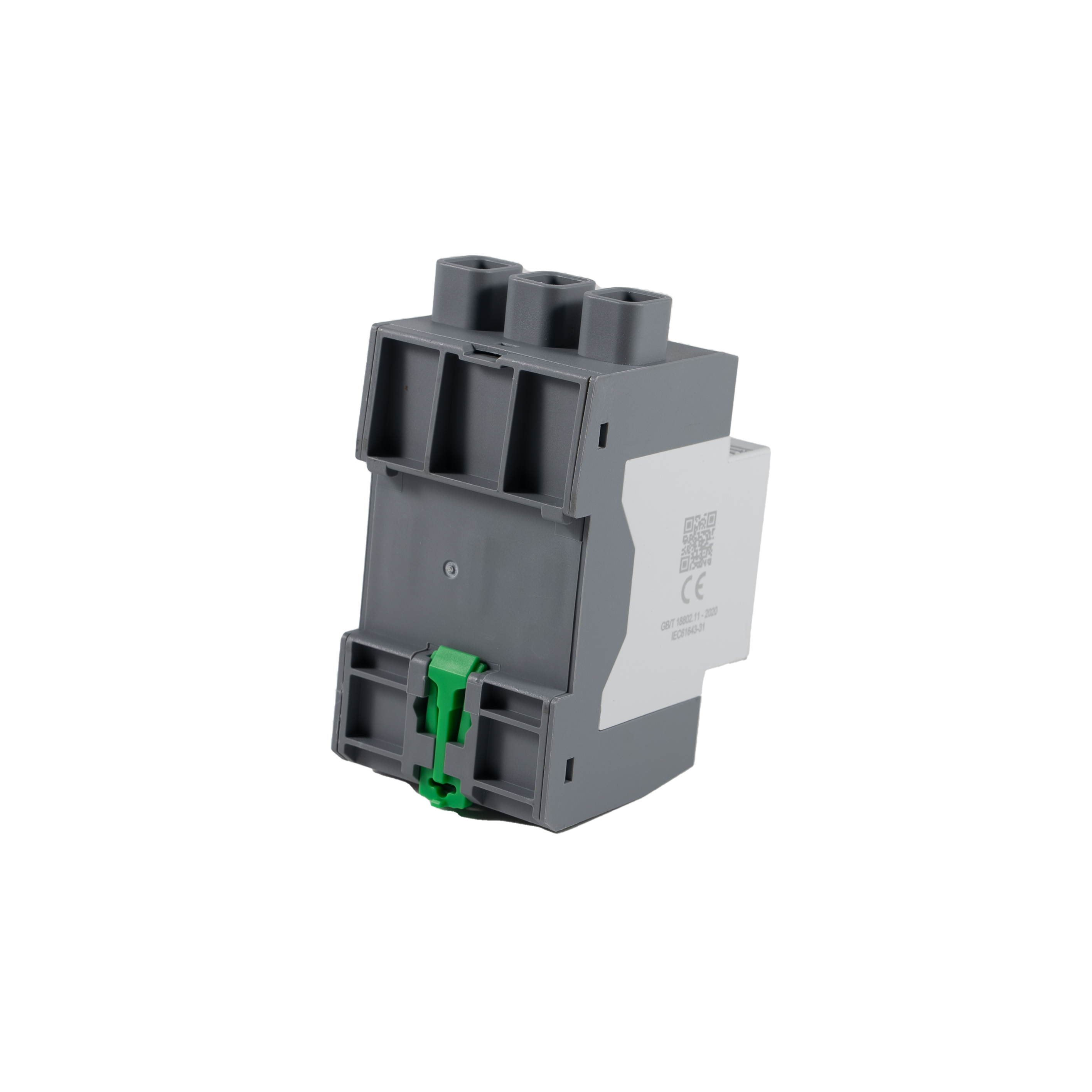

| Mounting method | 35 mm DIN rail |
|---|
| Alarm indication | Indicator window +remote signal contact (optional ) |
|---|
| Status indication | Green (OK) / red (Fault) |
|---|
| Operating temperature | -40°C~+85°C |
|---|
| Altitude | -500~5000m |
|---|
| Test standard | IEC/ EN 61643-31 (Type 2 /Class 2/T2/Class C ) |
|---|
