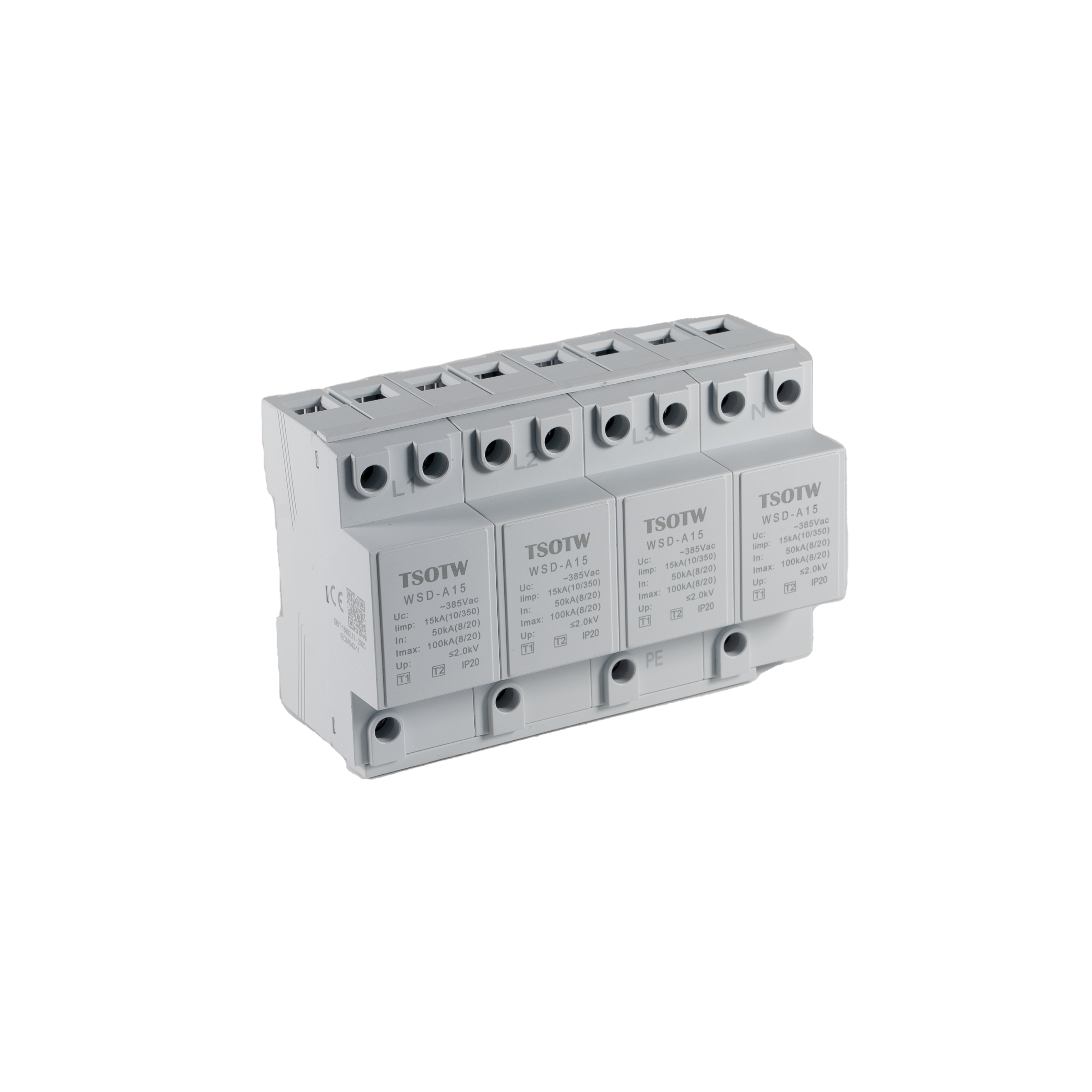

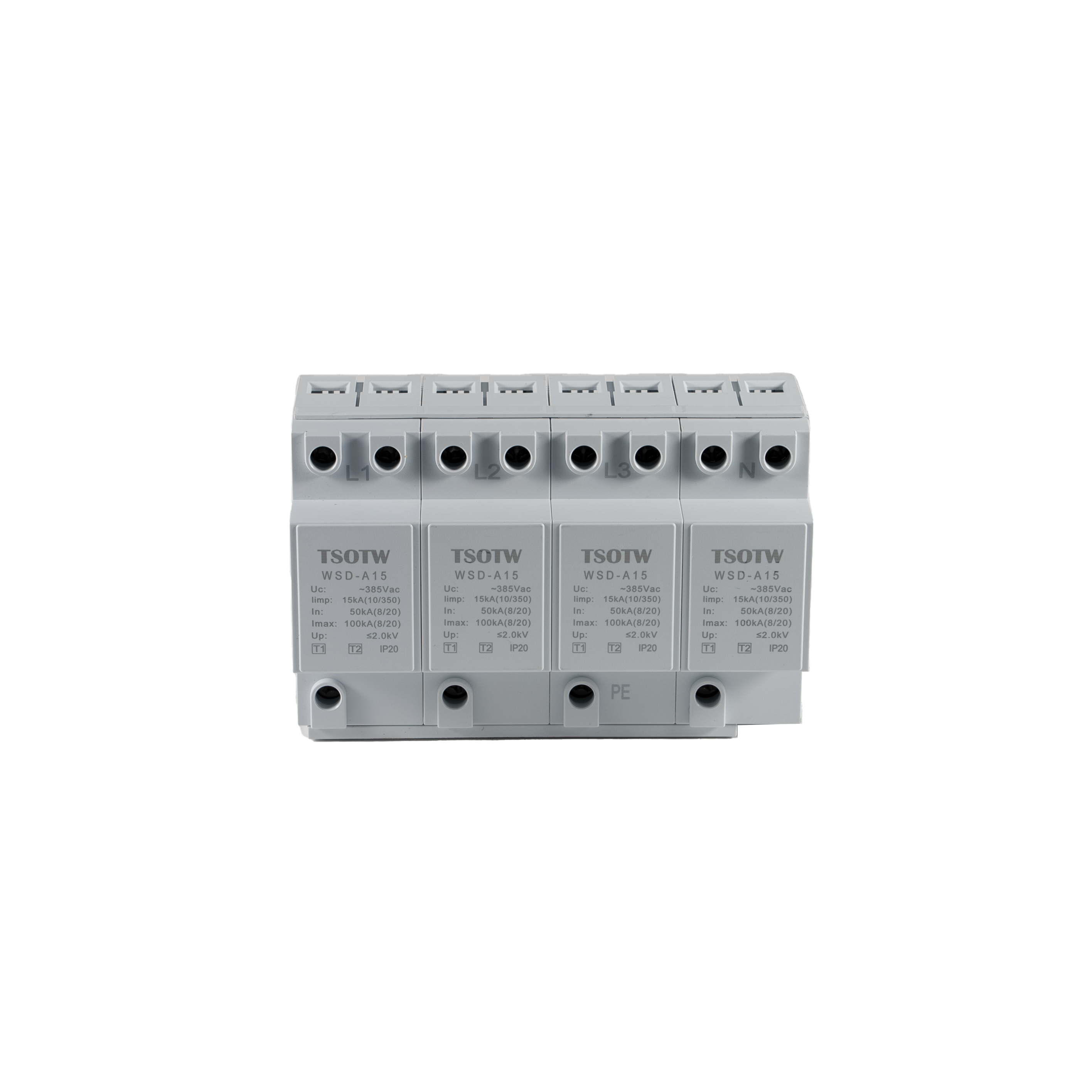

| Model WSD-A15 |
|---|
| Impact discharge current (10/350us) Iimp (kA) 15 | |
|---|
| Nominal discharge current (8/20us) In (kA) 50 |
|---|
| Maximum discharge current (8/20us) Imax (kA) 100 |
|---|
| System Voltage AC (V) 110 130 150 175 220 275 320 385 420 440 460 480 750 1140 | |
|---|
| Voltage protection level Up (kV) 1.6 1.8 1.8 1.8 2 2 2 2 2.2 2.2 2.4 2.6 3 4.5 |
|---|
| Certification CE / ROHS |
|---|
| Protection mode 1P / 1P+N / 2P / 3P / 3P+N / 4P |
|---|
| Response time 100ns |
|---|
| Max. wire cross-section 4AWG (25MM2) |
|---|
| Enclosure protection rating IP 20 |
|---|
| Enclosure material thermoplastic | Flame-retardant class UL94-V0 |
|---|
| Mounting method 35 mm DIN rail |
|---|
| Alarm indication remote signal contact (optional ) |
|---|
| Operating temperature -40°C~+80°C |
|---|
| Altitude -500~2000m |
|---|
| Test standard IEC/ EN 61643-11 (Type 1+ Type 2/T1+T2/Class B) |
|---|
